測量原理：氧化鋯鋯電勢

測量范圍：0.00PPm ～25.00%（自動換擋）

精    度：0～1000PPm ≤2%F.S

          0-25%  ≤2% F.S

分 辨 率：0.01

重  復  性：≤1%F.S

穩  定 性：零點漂移≤0.5% F.S/7d

           量程漂移≤0.5% F.S/7d

響應時間：T90≤15S

存儲間隔：1S-99min（可任意設置）

存儲點數：1824條

儀器壽命：整機6年（正確操作使用條件下）

工作電壓：220-240VAC，50\60Hz

整機功耗：≤50W

觸點輸出：雙繼電器輸出

觸點容量：220VAC，2A/24VDC，1A

數字信號：標準的RS485/RS232通訊口，可與計算機實現雙向通訊

模擬輸出：4～20mA標準輸出信號，負載電阻小于500歐（0～10V可選）

安裝方式：嵌入式安裝

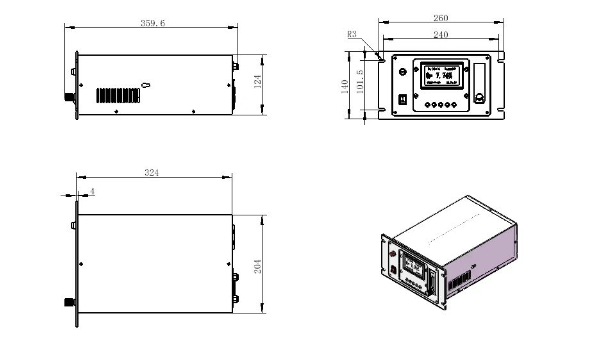

外形尺寸：260mm（寬）x140（高）x360mm（深）（可定制）

開孔尺寸：240mm（寬）×101.5mm（高）

進出氣口：Φ6 軟管（可根據客戶訂制）

整機重量：約2.5Kg

環境溫度：－25℃～＋55℃

環境濕度：≤90%RH

入口壓力：0.05 MPa≤入口壓力≤0.25MPa

樣氣流量：(400±50)ml/min

樣氣要求：無塵、無水、無油

l 儀器采用全中文菜單操作，通俗易懂、簡單可靠，具有控制觸點輸出、越限自身報警，并可隨意設置控制方式；

l 原裝氧化鋯鋯電勢傳感器，具有響應速度快，測量精度高，使用壽命長，標校周期長等特點；

l 320*240 圖形點陣彩色LCD 屏，清晰，細膩;

l 可同時顯示氧量、日期、時間等參數；

l 通過空氣中的一點標校，就可實現儀器從ppm-% 的準確測量，使其校準簡單方便；

l 方便快捷的通訊協議選擇，可替換市面上大多數氧分儀廠家的通訊協議。

l 無人職守時，定時自動存儲功能，可隨時查看存儲數據；

l 內置溫度補償，減小樣氣溫度和環境的變化對測量精度的影響；

l 標準4～20mA電流輸出和RS-232或RS-485（可任選其一）等外接端口；

l 采用新型的氣路穩流系統；具有技術先進、精度高、響應快、性能穩定、功能齊全、操作方便、氣體分析過程連續等優點；

    內置原裝進口采樣泵，壽命長、工作可靠（選配）

回流焊行業、空氣分離 、氣體生產制造、化工流程 、磁性材料等高溫?zé)Y(jié)爐保護性氣體、電子行業保護性氣體以及玻璃、建材行業的氧含量在線分析。
